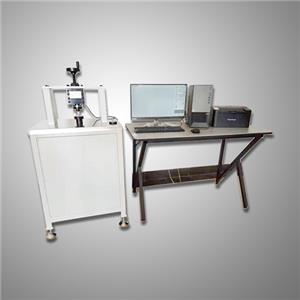

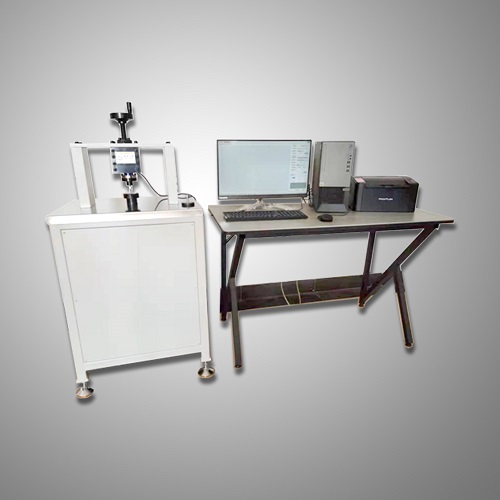

HK-18747.1 Automatic High-Precision Torque Testing Machine
Brand : HKProduct origin : China
Delivery time : within 30 days after recieving full TT payment
Supply capacity : 100set/month
HK-18747.1 Automatic High-Precision Torque Testing Machine is for torsional strength performance testing of anaerobic adhesives, other types of adhesives, etc. The material test can be carried out according to the standard of "GB/T18747.1-2002 Determination of Torque Strength of Anaerobic Adhesives (Threaded Fasteners)", and corresponding data processing can be carried out. During the test, the torque curve is displayed in real time, and it supports exporting and printing A4 paper test reports, which are widely used in various enterprises, scientific research institutions and other industries. The automatic high-precision torque testing machine adopts computer control operation, which can collect torque data. Independent electronic measurement and control system adopts computer to control, collect, analyze and process test data. Test data and curves are dynamically displayed along with the test process. The test data is automatically processed and displayed, and the torque-angle curve is drawn. Material, torsion, strength and other test reports in line with national standards, with automatic tracking and measurement of torsional force values, automatic determination of torque physical quantities, etc.
HK-18747.1 Automatic High-Precision Torque Testing Machine
Overview
HK-18747.1 Automatic High-Precision Torque Testing Machine is for torsional strength performance testing of anaerobic adhesives, other types of adhesives, etc. The material test can be carried out according to the standard of "GB/T18747.1-2002 Determination of Torque Strength of Anaerobic Adhesives (Threaded Fasteners)", and corresponding data processing can be carried out. During the test, the torque curve is displayed in real time, and it supports exporting and printing A4 paper test reports, which are widely used in various enterprises, scientific research institutions and other industries.
The automatic high-precision torque testing machine adopts computer control operation, which can collect torque data. Independent electronic measurement and control system adopts computer to control, collect, analyze and process test data. Test data and curves are dynamically displayed along with the test process. The test data is automatically processed and displayed, and the torque-angle curve is drawn. Material, torsion, strength and other test reports in line with national standards, with automatic tracking and measurement of torsional force values, automatic determination of torque physical quantities, etc.
Technical parameters
Type：Stand
Measuring range：1～100N•m
Resolution：0.01N•m
Accuracy：0.1N•m
Motor type：Servo control motor 3000rpm, with reducer 50:1 output
Revolution speed：2r/min,5 r/min ,10 r/min, adjustable
Torsion direction：Both forward and reverse directions
Sample dimension：16mm
Detector：Torque meter with output curve display function
Bolt specification：M10x bolts (30～35) and M10 nuts are recommended
Holder：16mm opposite hexagon, 60mm vertical operating space
PC information：Lenovo desktop host, I5, 8G, 1T hard drive, 23-inch monitor
Printer：Laser printer
Rated voltage：AC 220V 50Hz
Power：2.5kW
Volume：600X500X1300mm
