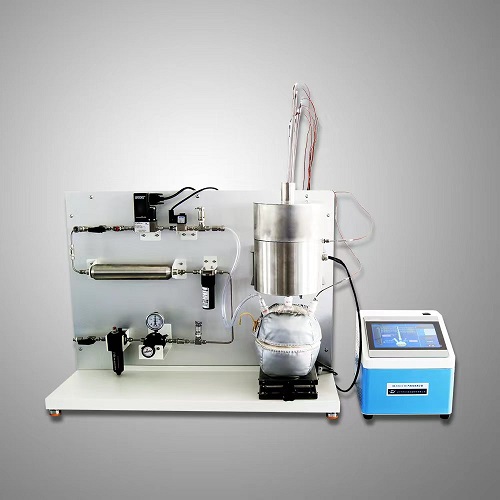

HK-5921A VPC Gas Phase Coking Tester

Brand : HK
Product origin : China
Delivery time : within 30 days after recieving full TT payment
Supply capacity : 100set/month

The VPC Gas Phase Coking Tester complies with the requirements of test standards including GJB 1263A Appendix D, SAE ARP5921, and the VPC Gas Phase Coking Evaluation Method. It is suitable for evaluating the coking tendency of ester-type synthetic aviation lubricating oils under the mixed state of air and oil phases, so as to simulate the condition of ventilation pipes in bearing chambers. When conducting airworthiness verification on the performance of turbine lubricating oils, it is necessary to measure the tendency of the mixture of their vapor and air to generate harmful carbon deposits on the surface of hot-end components such as engine ventilation pipes through high-temperature oxidation or thermal cracking reactions under high-temperature immersion conditions. The Civil Aviation Administration of China (CAAC) technical standard "Civil Aircraft Engine Lubricating Oils" (CTS0-2C704) clearly stipulates that turbine lubricating oils must undergo a gas phase coking test to determine the tendency of lubricating oils to form carbon deposits in the high-temperature ventilation pipe area of aviation turbine engines without oil immersion. It is required to report the deposition amount in the measuring tube, as well as the 40℃ kinematic viscosity change rate and acid value change of the lubricating oil before and after the test. Combining standard methods, foreign prototype research and standard investigation, our company has independently developed, designed and produced the VPC Gas Phase Coking Tester, which meets the method requirements of this test and is the only manufacturer of this product in China.

Overview

The VPC Gas Phase Coking Tester complies with the requirements of test standards including GJB 1263A Appendix D, SAE ARP5921, and the VPC Gas Phase Coking Evaluation Method. It is suitable for evaluating the coking tendency of ester-type synthetic aviation lubricating oils under the mixed state of air and oil phases, so as to simulate the condition of ventilation pipes in bearing chambers.When conducting airworthiness verification on the performance of turbine lubricating oils, it is necessary to measure the tendency of the mixture of their vapor and air to generate harmful carbon deposits on the surface of hot-end components such as engine ventilation pipes through high-temperature oxidation or thermal cracking reactions under high-temperature immersion conditions. The Civil Aviation Administration of China (CAAC) technical standard "Civil Aircraft Engine Lubricating Oils" (CTS0-2C704) clearly stipulates that turbine lubricating oils must undergo a gas phase coking test to determine the tendency of lubricating oils to form carbon deposits in the high-temperature ventilation pipe area of aviation turbine engines without oil immersion. It is required to report the deposition amount in the measuring tube, as well as the 40℃ kinematic viscosity change rate and acid value change of the lubricating oil before and after the test.Combining standard methods, foreign prototype research and standard investigation, our company has independently developed, designed and produced the VPC Gas Phase Coking Tester, which meets the method requirements of this test and is the only manufacturer of this product in China.

Features

1. The instrument consists of an oil heating module, a test tube heating module, an automatic data collection and calculation module, an automatic control module, an air purification module, and a flow control module.2. The instrument automatically records the temperature at each temperature point according to time, no manual monitoring and recording are required.3. Key components of the instrument are imported to ensure product stability.4. The instrument automatically times and stops heating and air supply after 18 hours.5. The instrument is equipped with a professionally designed pipe cutting saw, which can safely and conveniently complete the section pipe cutting step.

Technical Parameters

1. Power Supply: AC 220V±10% 50Hz2. Power: 2200W3. Oil Heating Method: Heating jacket automatic heating4. Test Tube Heating Method: Metal bath heating5. Constant Temperature Accuracy: ±1℃6. Flow Rate: (765±5)ml/min7. Environmental Requirements: Temperature 5～40℃; Humidity ≤85%

Packaging & Shipping

1 How to deliver?

We can send by Express or by Air. Also we have best transportation solution for DHL, FEDEX, UPS,TNT faster and cheaper

2 What if it broken during transport?

Please do not worry, we do standard export package.

We have 12 months warranty, if it broken during transport, we can change a new one for you. If it is broken after 12 months, we can supply you a new one at a cost price.

VPC

Gas Phase Coking Tester
