Practices for Core Analysis Tester

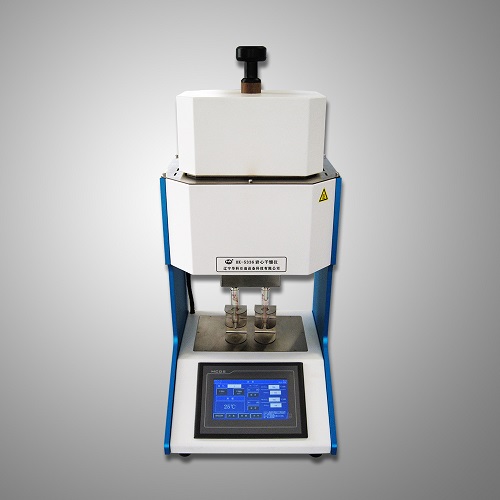

 HK-5336 Practices for Core Analysis Tester

Overview
    HK-5336 Practices for Core Analysis Tester conforms to SY/T5356 Practices for Core Analysis Method, it is suitable for measuring the fluid saturation of the core

Features

1. Double imported electric heating element, stable temperature field, high temperature and durability, through the perspective window, clear observation

2. Touch screen operation, one-button to do the dry distillation and dry distillation experiment

3. The screen comes with formula calculation, automatically calculate oil and water saturation

4.5 holes design, stainless steel dry distillation cup, internal integrated cooling water tank design, external double shell safety anti-scalding

5. Data can be stored and printed, uploaded to the lab server

6. Equipped with HKT-001A low temperature circulation bath

Technical Parameters
1. Rated voltage：AC 220V ±10% 50Hz
2. Temperature range：Ambient～600℃
3. Accuracy：±1℃
4. Temperature sensor：Imported thermal couple
5. Test holes：5
6.Ambient requirement：Temperature:5～40℃； Humidity≤85%
7.Dimension：590×510×600（mm）
