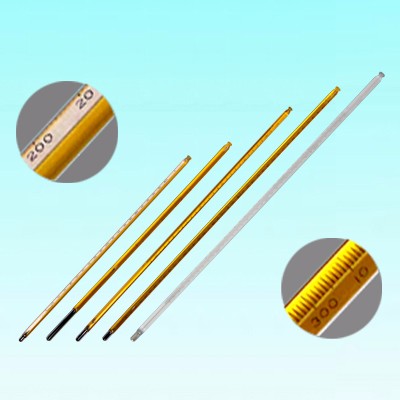

COK Coking thermometer series

COK Coking thermometer series(YB/T 2305)
No.	Name	Range (℃)	Division (℃)	Shape	Length (mm)	OD (mm)	Immersion (mm)	Standard
1C	Benzene crystallization point thermometer	4～6	0.02	Stem	215±5	6.0～7.0	Full	ASTM D582
2C	Phenol crystallization point thermometer	0～50	0.1	Stem	400±10	6.0～7.0	Full	GB/T2602,GB/T3710, GB/T6706
3C	Wash oil naphthalene content thermometer	55～85	0.1	Stem	320±5	6.0～7.0	Full	YB/T5029
4C	Benzene distillation, phenol crystallization point thermometer	70～90	0.1	Stem	300±5	6.0～7.0	Full	GB/T3069.2,GB3146
5C	Methanol，pure pyridine distillation thermometer	100～120	0.1	Stem	300±5	6.0～7.0	Full	GB/T3146,GB/T8033, GB/T2282
6C	Xylene distillation thermometer	125～150	0.1	Stem	300±5	6.0～7.0	Full	GB/T3146,GB/T8033
7C	Phenols distillation thermometer	180～230	0.1	Stem	400±10	6.0～7.0	Full	GB/T2282
8C	Anthraquinone, anhydride naphthalene melting point thermometer	250～300	0.1	Stem	400±10	6.0～7.0	Full	GB/T2405,YB/T5098
9C	Density thermometer	0～50	0.2	Stem	290±5	6.0～7.0	Full	GB/T2013,GB/T2281, GB/T15243,YB/T5282
10C	Softening point #1 thermometer	0～100	0.2	Stem	410±10	6.0～7.0	95	GB/T2294
11C	Softening point #2 thermometer	40～150	0.2	Stem	410±10	6.0～7.0	95	GB/T2294
12C	Liquidity #1 thermometer	15～45	0.1	Stem	300±5	6.0～7.0	100	YB/T5173
13C	Quinolines distillation thermometer	225～245	0.1	Stem	300±5	6.0～7.0	Full	GB/T2282
14C	Viscosity #1 thermometer	28～62	0.2	Stem	320±5	6.0～7.0	Full	YB/T033
20C	Viscosity #2 thermometer	0～100	0.5	Stem	410±10	6.0～7.0	Full	YB/T033
21C	Crude and light benzene distillation thermometer	50～210	0.5	Stem	330±5	6.0～7.0	Full	GB/T2282
22C	Crude phenol and heavy benzenes distillation thermometer	100～250	0.5	Stem	320±5	6.0～7.0	Full	GB/T2282
23C	Exposed correction thermometer	0～50	1.0	Stem	180±5	6.0～7.0	Full	GB/T2282,GB/T18255, YB/T032,YB/T5026
24C	Liquidity #2 thermometer	0～250	1.0	Stem	310±5	6.0～7.0	Full	GB/T6701,YB/T5173, GB/T2294
25C	Sticky oil distillation thermnometer	100～370	1.0	Stem	380±5	6.0～7.0	Full	GB/T18255,YB/T023, YB/T5170,YB/T5175
26C	Auxiliary thermometer	0～100	1.0	Stem	270±5	6.0～7.0	Full	GB/T2405,GB/T2602, GB/T3069.2,GB/T3710, GB/T6706,YB/T5031, YB/T5098,YB/T5171
27C	Pyridines distillation thermometer	100～150	1.0	Stem	300±5	6.0～7.0	Full	GB/T2282
28C	Pydridines content thermometer	0～360	1.0	Stem	350±5	6.0～7.0	Full	YB/T5072
29C	Wood anti-corrosive oil flash point thermometer	0～360	1.0	Stem	330±5	6.0～7.0	45	YB/T5172
30C	Carbon black raw oil distillation thermometer	-2～400	1.0	Stem	385±5	6.0～7.0	Full	YB/T5175
31C	Phenols content thermometer	0～300	2.0	Stem	300±5	6.0～7.0	Full	YB/T5080

These thermometers for petroleum product experiments are highly specialized. They cover various key temperature ranges, such as -30 ~ 50°C for oil cylinders and 30 ~ 200°C for melting points, with graduation values as precise as 0.2°C for accurate readings. Available in rod and internal standard shapes, they fit different experimental setups. With appropriate dimensions like total length (300±10 mm to 350±10 mm) and outer diameter (6 ~ 10 mm), and specified immersion depths (full immersion or fixed lengths like 65 mm, 75 mm), they ensure reliable temperature measurement in experiments like determining crystallization points, pour points, and melting points, meeting the strict requirements of petroleum product testing.
