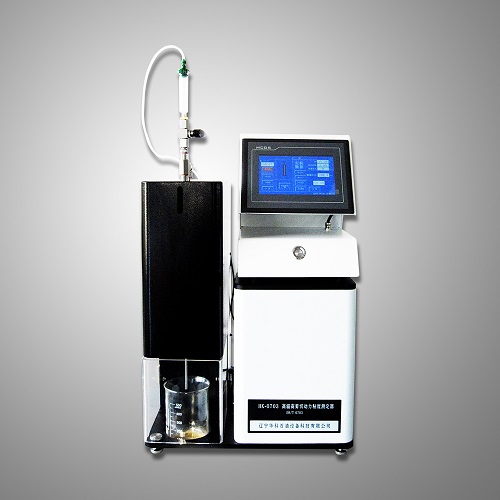

High Temperature And High Shear Rate Apparent Viscosity Tester HTHS

Brand : HK
Product origin : China
Delivery time : within 30 days after recieving full TT payment
Supply capacity : 100set/month

Hihg-Temperature and High-Shear Rate Apparent Viscosity Tester (HTHS) covers the laboratory determination of hihg-temperature high-shear (HTHS) viscosity of engine oil at a temperature of 150℃ using a multicell capillary viscometer containing pressure, temperature, and timing instrumentation. The shear rate for this test method corresponds to an apparent shear rate at the wall of 1.4 million reciprocal seconds (1.4 3 106s-1).This shear rate has been found to decrease the discrepancy between this test method and other high temperature hihg-shear test methods used for engine oil specifications. Viscosities are determined directly from calibrations that have been established with Newtonian oils with viscosities from 2 to 5 mPa-s at 150℃.

HK-0703 Hihg-Temperature and High-Shear Rate Apparent Viscosity Tester (HTHS)

Overview

HK-0703 Hihg-Temperature and High-Shear Rate Apparent Viscosity Tester (HTHS) conforms to ASTM D5481 Standard Test Method for Measuring Apparent Viscosity at High-Temperature and High-Shear Rate by Multicell Capillary Viscometer, it covers the laboratory determination of hihg-temperature high-shear (HTHS) viscosity of engine oil at a temperature of 150℃ using a multicell capillary viscometer containing pressure, temperature, and timing instrumentation. The shear rate for this test method corresponds to an apparent shear rate at the wall of 1.4 million reciprocal seconds (1.4 3 106s-1).This shear rate has been found to decrease the discrepancy between this test method and other high temperature hihg-shear test methods used for engine oil specifications. Viscosities are determined directly from calibrations that have been established with Newtonian oils with viscosities from 2 to 5 mPa-s at 150℃.


Features

1. Touch screen operation, built-in standard computer calculation program, easy to operation

2. Imported needle valve, full time safe pressure detecting system

3. One button to start the test, easy and convenient to operate



Technical Parameters

1. Applicable standard: ASTM D5481

2. Temperature control method: Electrical heating bar

3. Temperature control range: Ambient-150℃±0.1℃

4. Capillary tube dimension: φ0.15*18mm

5. Power: 700W

6. Pressure oxygen source: Oxygen, CO2

7. Dimension: 360*450*630mm, 40kg



Packaging & Shipping

1 How to deliver?

We can send by Express or by Air. Also we have best transportation solution for DHL, FEDEX, UPS,TNT faster and cheaper

2 What if it broken during transport?

Please do not worry, we do standard export package.

We have 12 months warranty, if it broken during transport, we can change a new one for you. If it is broken after 12 months, we can supply you a new one at a cost price.

High Temperature And High Shear Rate Apparent Viscosity Tester (HTHS)HTHS
