Insulating Oil Dielectric Break Down Test

Brand : HK
Product origin : China
Delivery time : within 30 days after recieving full TT payment
Supply capacity : 100set/month

HK-507A conforms to ASTM D1816 Standard Test Method for Dielectric Breakdown Voltage of Insulating Oils of Petroleum Origin Using VDE Electrodes, Oils that combine a high flashpoint with high dielectric strength have long been used as an insulating medium in transformers, switchgear and other electrical apparatus. To ensure that the dielectric strength of the oil does not deteriorate however, proper maintenance is essential, and the basis of proper maintenance is testing For many electric equipments used in power system and enterprises, inner insulation is mostly oil-insulated. Oil dielectric strength test is one of the essential routine tests. Our HK-507A oil dielectric breakdowntester is the ideal testing device for oil dielectric strength. The test sets are fully automatic.Our products have been used by many power enterprises all over the world.

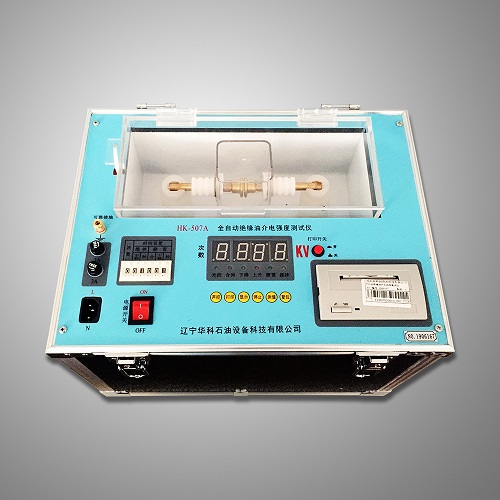

HK-507A Insulating Oil Dielectric Breakdown Tester

General introduction

HK-507A conforms to ASTM D1816 Standard Test Method for Dielectric Breakdown Voltage of Insulating Oils of Petroleum Origin Using VDE Electrodes, Oils that combine a high flashpoint with high dielectric strength have long been used as an insulating medium in transformers, switchgear and other electrical apparatus. To ensure that the dielectric strength of the oil does not deteriorate however, proper maintenance is essential, and the basis of proper maintenance is testing For many electric equipments used in power system and enterprises, inner insulation is mostly oil-insulated. Oil dielectric strength test is one of the essential routine tests. Our HK-507A oil dielectric breakdowntester is the ideal testing device for oil dielectric strength. The test sets are fully automatic.Our products have been used by many power enterprises all over the world.


Function

1.It is portable and single oil cup structure, controlled by microprocessor, can be achieved a series of operation automatically, such as voltage rise, voltage hold, voltage fall, stir, display , calculation and print result. The tester can conduct the oil dielectric breakdown test at voltage of 0~80kV.

2.We adopt large lattice LCD screen with inner backlight system, even clearly visible in the night, the testing process by English menu prompt, easy to operate.

3.Operator inputs brief command so that it will fulfill oil dielectric strength tests. If requires user can print out the result .

4.The instrument operation is simple, the operator only needs to input simple instructions according to the manual, then the instrument will automatically complete insulating oil dielectric breakdown test according to setting. The instrument will automatically store each breakdown voltage value, after the test, choose print, it can print out each dielectric breakdown result and average value.

5.portable and can be used in both lab and outdoor measurement . It is easy to carry and has good anti-disturbance and can also be used under strong electro-magnetic conditions.

6.The tester is equipped with protection unit such as over-voltage, over-current, and auto-restore, and can ensure safety for the operators under normal conditions.

7.voltage rise rate can be set according to different kinds of standard


Technical parameters

1.Voltage: AC220V±10%

2.Frequency : 50 Hz ± 1Hz

3.Power : < 200W

4.Output :0~60kV\; 0~80kV(alternative)

5.Voltage booster capacity: 1.5kVA

6.Voltage rise rate: 2.0 ; 3.0; (adjustable)

7.Voltage total harmonic distortion: <3%    <>8.Dimension : 470 X 390 X 4209.Weight: 40kg<3% <>


Working condition

Ambient  Temperature : 0~40℃

Relative humidity : <75%

Oil cup capacity:200ml(400ml)

Distance of electrode:2.5mm

Packaging & Shipping

1 How to deliver?

We can send by Express or by Air. Also we have best transportation solution for DHL, FEDEX, UPS,TNT faster and cheaper

2 What if it broken during transport?

Please do not worry, we do standard export package.

We have 12 months warranty, if it broken during transport, we can change a new one for you. If it is broken after 12 months, we can supply you a new one at a cost price.

Insulating Oil Dielectric Break Down Testastm d1816

FAQ

1. Why choose us?

Low price:

We are end manufacturer instead of trader or dealer, saving a lot of medium cost, cutting the prices factually and saving money for customers.

High quality:

Our company focuses on product quality. We equip professional research and development team.

Good service:

We could provide product catalog and user manual to customer during inquiry stage. We will offer the installation and operation video, debug video and maintaining videoto our customer before Ex-work.  Following link is the video address which is for our previous customer:

https://www.youtube.com/channel/UC4NDJI_tKsJIuaixCMDQF4w

We offer fast delivery and secure packing. We provide one year guarantee and long term spare parts supply at cost price.

2. How can I choose the suitable one?

We design and manufacture our testers based on ASTM, IP, ISO standards, so user may tell the exact standard or test method to us, and then we can offer our solution.

3. How can I pay?

We accept many payment terms, such as T/T, L/C, Western Union, PayPal, and money gram and so on.

4. When I receive it after pay?

Normally, we have testers in our stock, if not, we can deliver within 5-7 days, please contact us to check transport time and charge to your address.

5. What should I do if I do not know how to use?

Please do not worry, manual user will be sent together, also we can offer Operation and installation video, you can also contact us with more technological support.

6. What should I do if some parts broken?

Please do not worry, we have 12 months warranty except accessories, you can also buy parts from us after 12months.

7. Can I order OEM/ ODM services?

YES, product can be customized.
